Forged Steel Modules

AMERICAN brand fluid end modules are setting the standard for the drilling industry with their unequaled combination of quality and affordability. Manufactured out of premium forged alloy steel, heat-treated to ensure durability, machined in state-of-the-art CNC horizontal lathes and machining centers under API 7-K and ISO 9001 certificates; AMERICAN brand modules provide the best value dollar for dollar in the industry. All modules are quality control inspected on CMM laser-node equipment to ensure exact adherence to tolerance and design specs. American Manufacturing offers both EMSCO and Asian style modules for the popular HHF/Bomco design.

  • All fluid end modules completely compatible and interchangeable with OEM or Asian style pumps

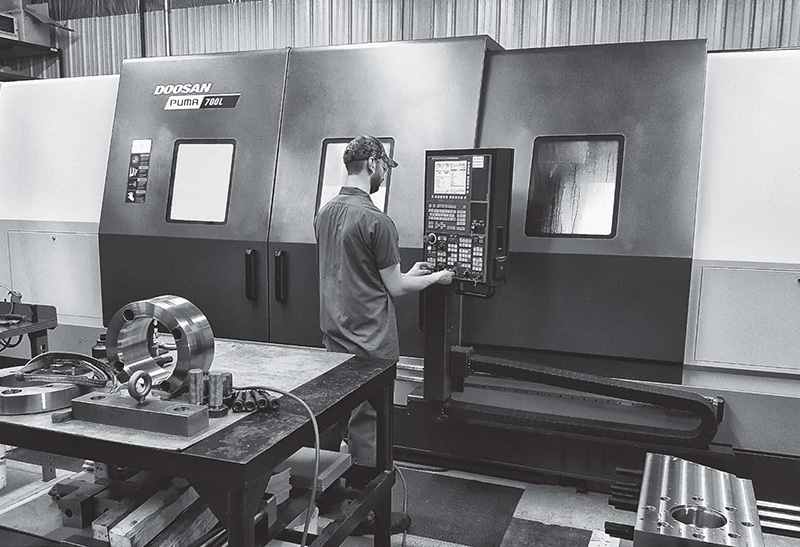

  • Machined in state-of-the-art CNC lathes and CNC boring mills under API 7-K and ISO 9001 certs at Minnesota factory

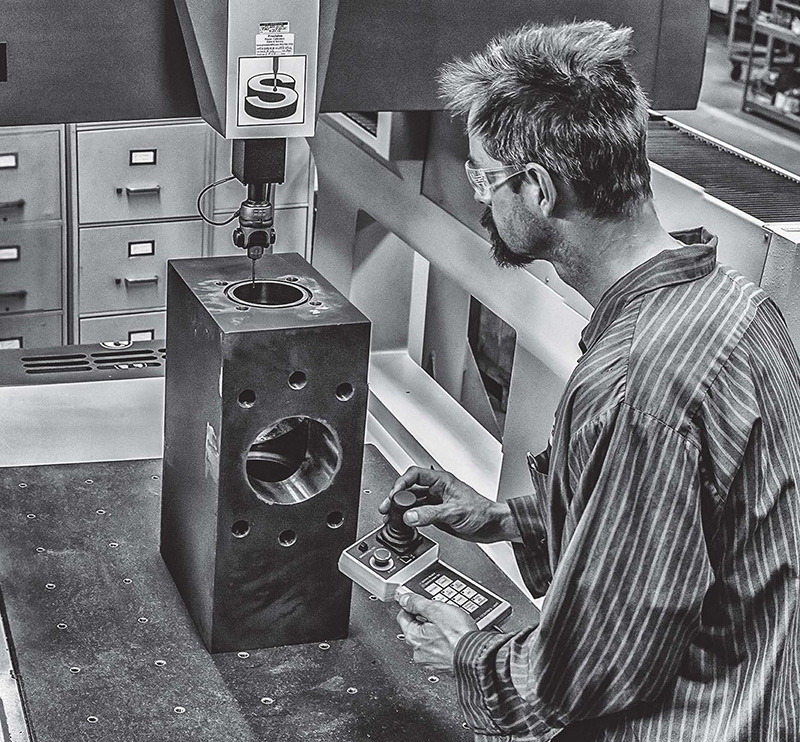

  • Each piece inspected by both CMM machine and experienced QC technician
  • Offered in both valve over valve or two piece L-shaped configurations
  • 5,000 PSI and 7,500 PSI assemblies available

AMERICAN brand fluid end module jewelry is available in both OEM and Asian style. Large CNC machined runs of these products insure absolute uniformity and conformity with original spare part.

  • EMSCO and HHF/Bomco style lower valve guide
  • Valve and cylinder covers
  • Liner lock nuts, wear plates and threaded rings
  • Module studs sets
